ICE INSTALL
Soundproofing

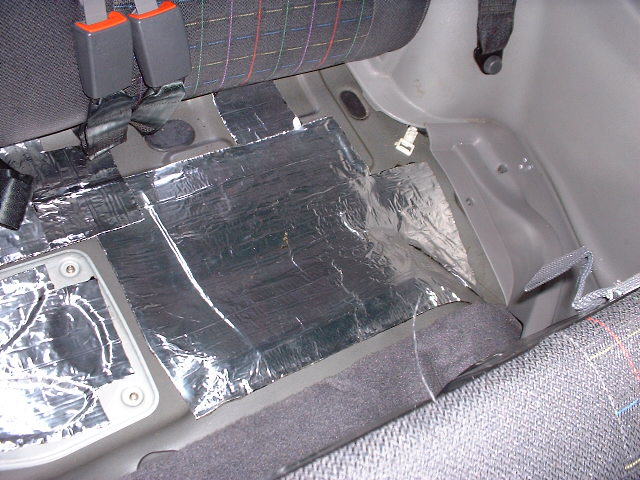

This procedure, required the removal of rear seats, and side interior panels.

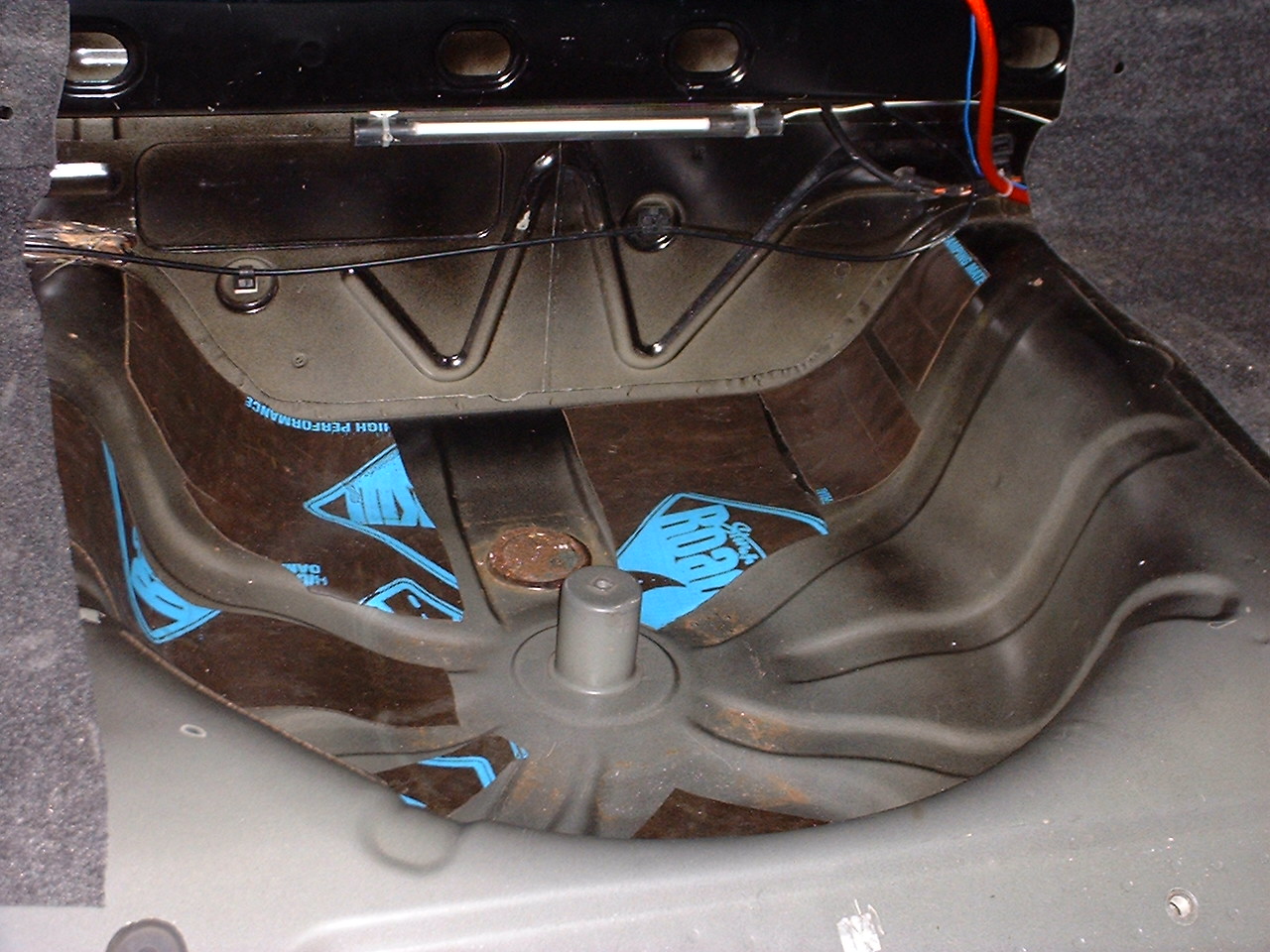

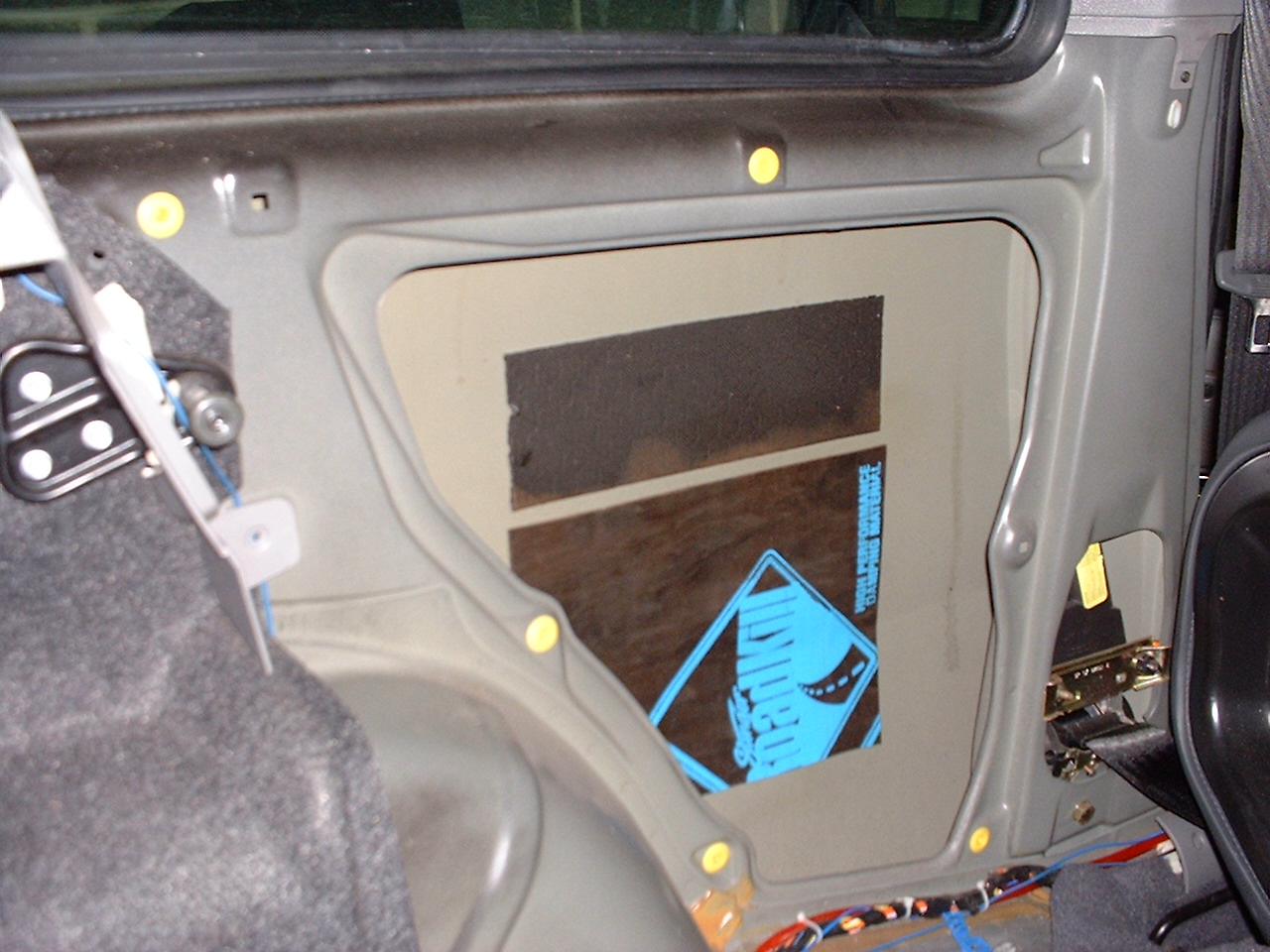

I then used "Stinger Roadkill Original" sound damping, to line the rear quarter panels, the boot floor and rear arches.

Next to be sound deadened will be the front floor pans and inside the front doors.
For that I am using PRO sounds dead material, as it is thinner and has less weight. Pic's to follow.

Speakers
2 x Alpine SWR-254D 10" Subwoofer
300w RMS 1000w Peak

2 x Alpine SCS-1356 5-1/4" Components
50w RMS150w Peak

2 x JBL GTO402MKII 4" 2 Way
5-75w RMS

2 x Kenwood KFC HQ715 7x10" 3 Way
150w RMS 300w Peak

Head Unit
Sony XR-M500R + 10 Disc Multichanger
4 x 50w output

Amplification
Kenwood KAC-PS301T 2 Channel
Kenwood KAC-PS201T 2 Channel

Boot Install
Measurements were made, arguments were had, but finally I settled on a design with "MB Auto Acoustics"
The boxes had to be re-designed from the manufacturers dimensions to fit into the punto boot along with the 2 Kenwood Amplifiers, But to still keep the airflow the same. We decided to go for the ported box design. So I ordered some nice Aluminum finished ports, and we got to work.

Final Designs

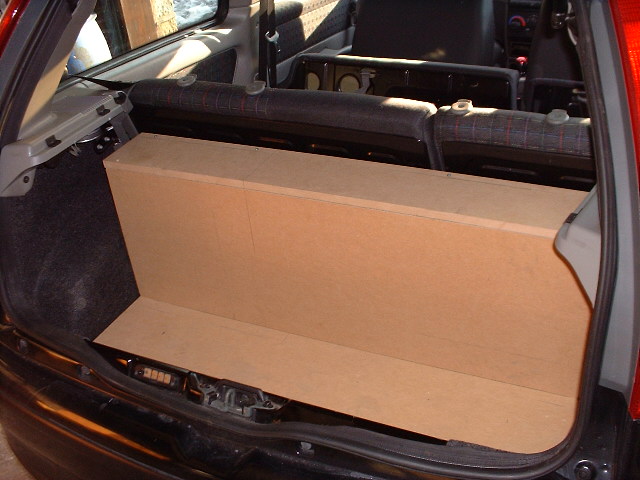

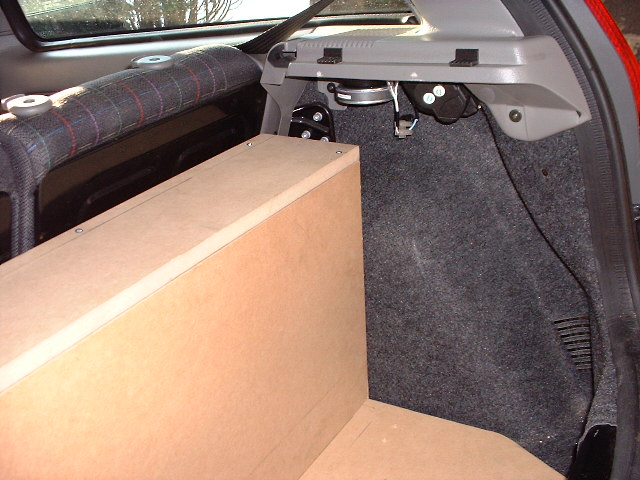

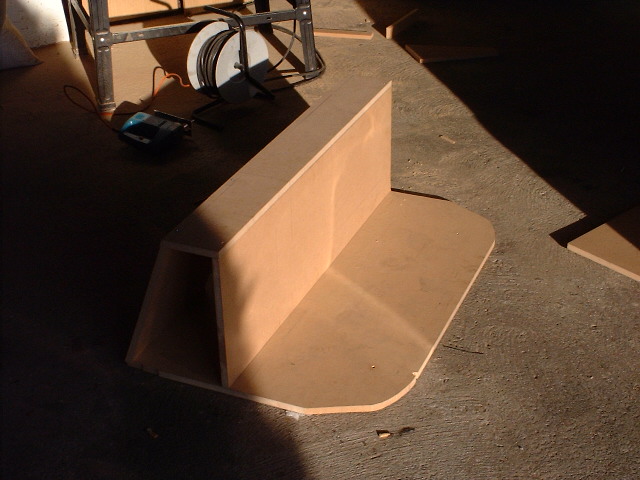

Coming along nicely

Still a long way to go!

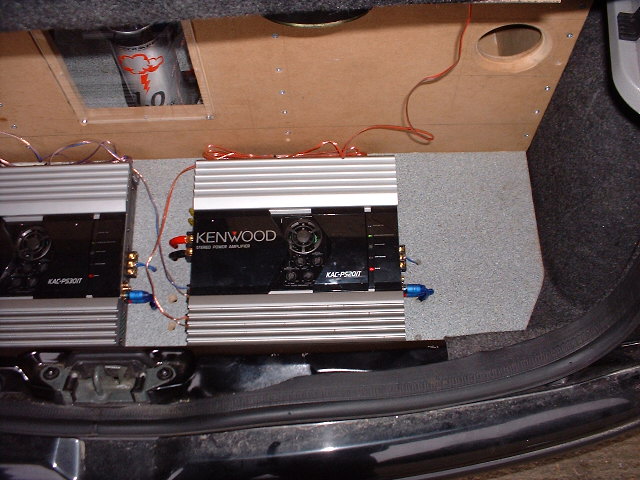

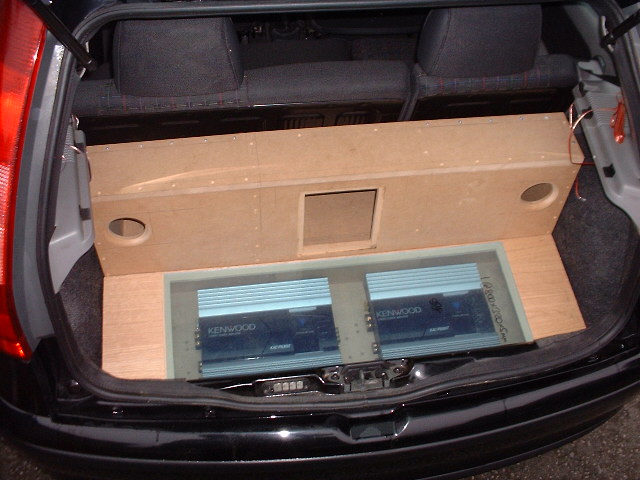

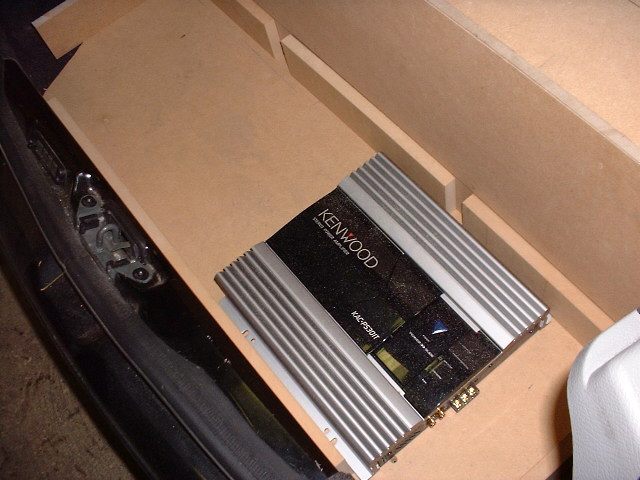

The next step was to get a raised floor assembled, with the amplifiers underneath a perspex cover...

Now that is tight!!!


Positioning Multichanger

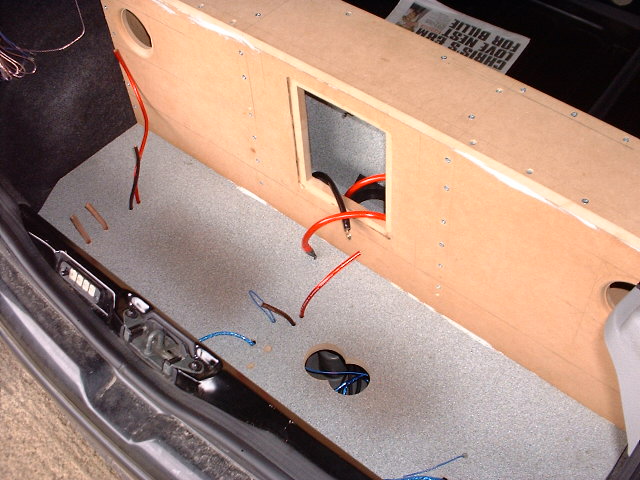

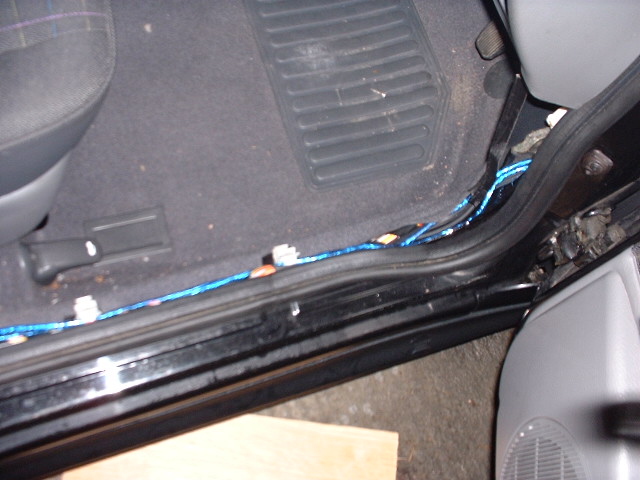

Laying Phono cables

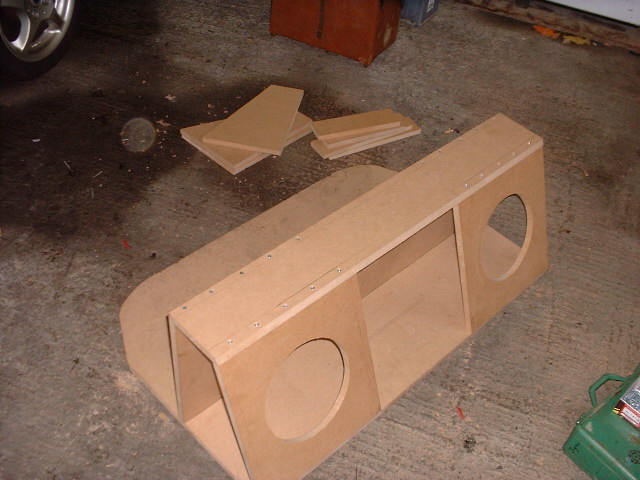

We had to locate the subs on the rear of the box as the original designs didn't leave enough room for the subs, once the bread tray was in place

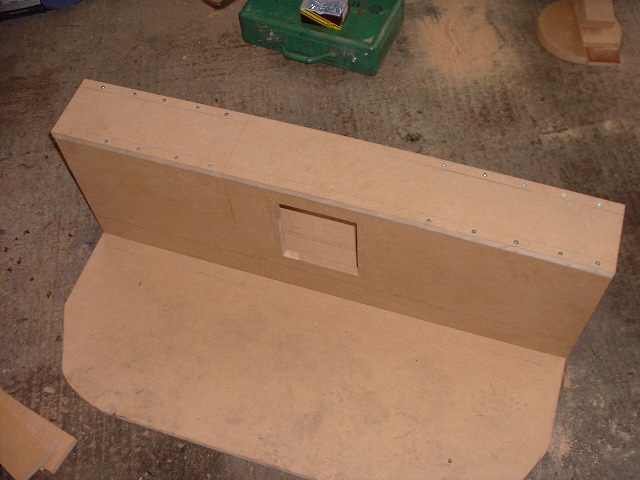

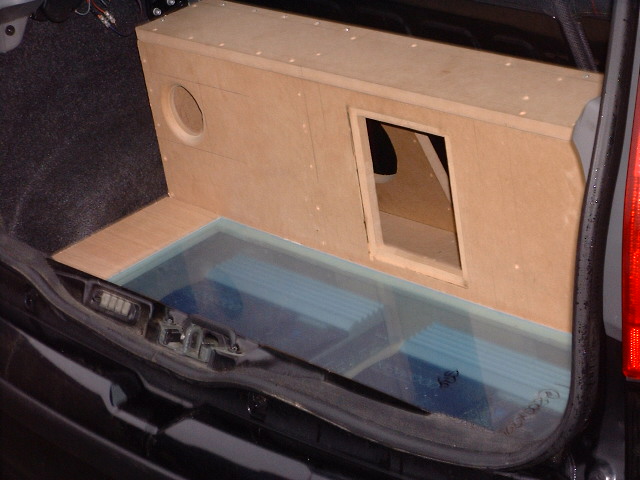

Then we chopped a hole in the front for the window, which the cap is to be located behind

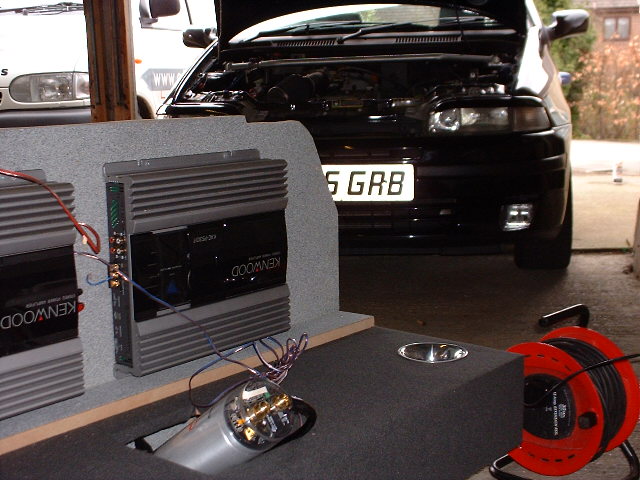

Ports are still to be located in the front

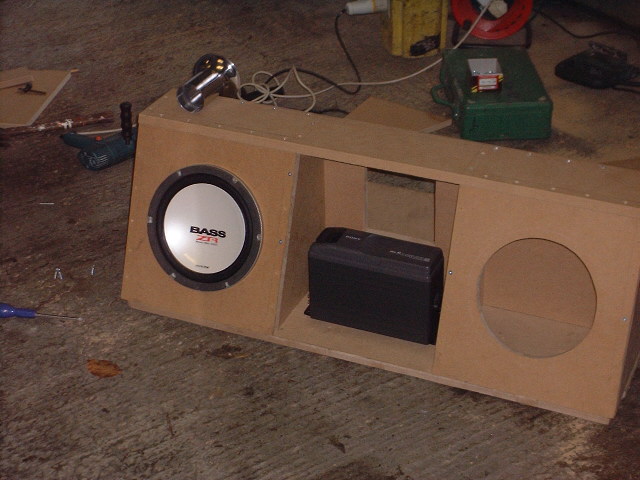

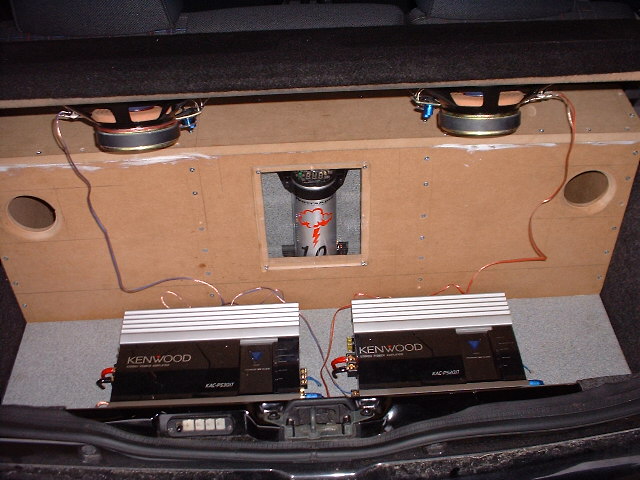

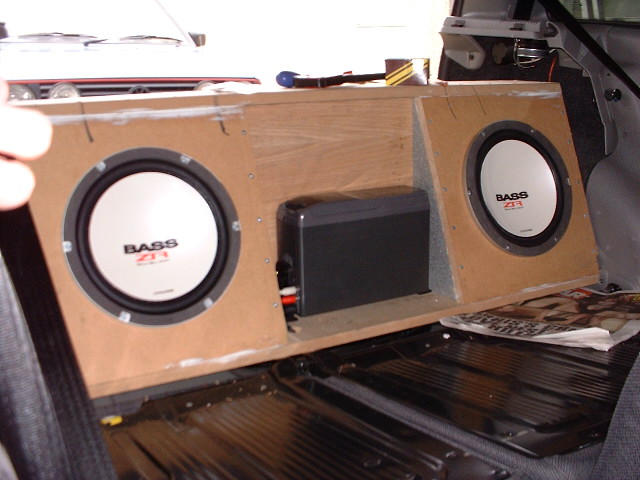

Trying the subs & multichanger

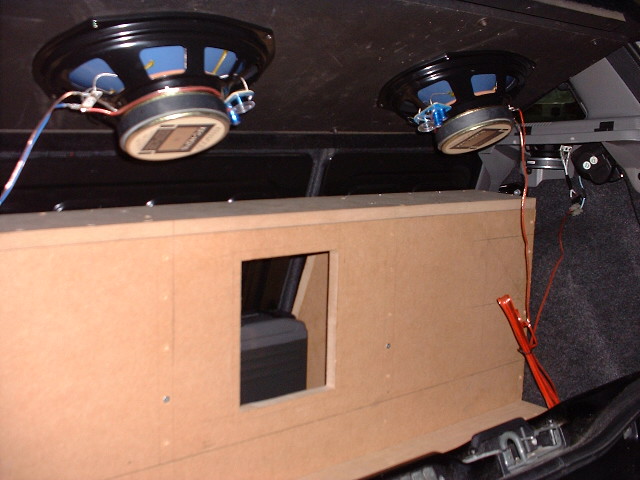

Kenwood KFC HQ715's

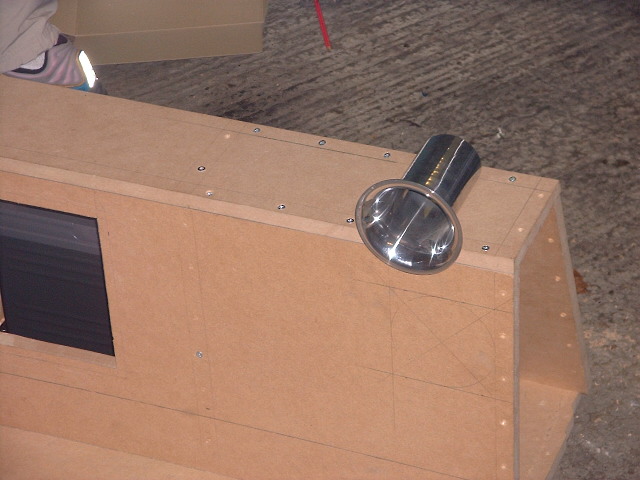

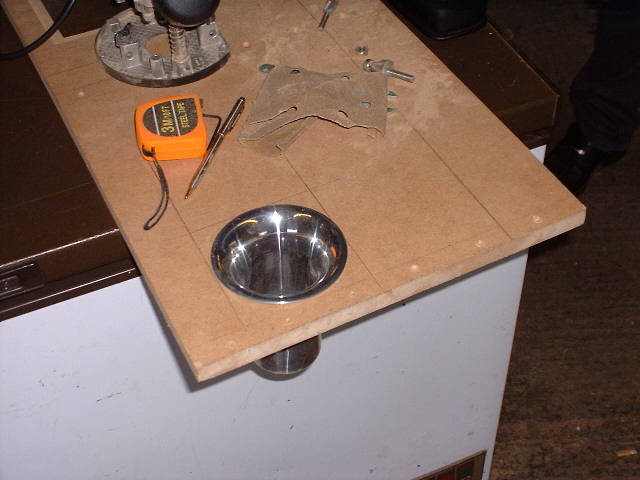

Port fits (finally!)

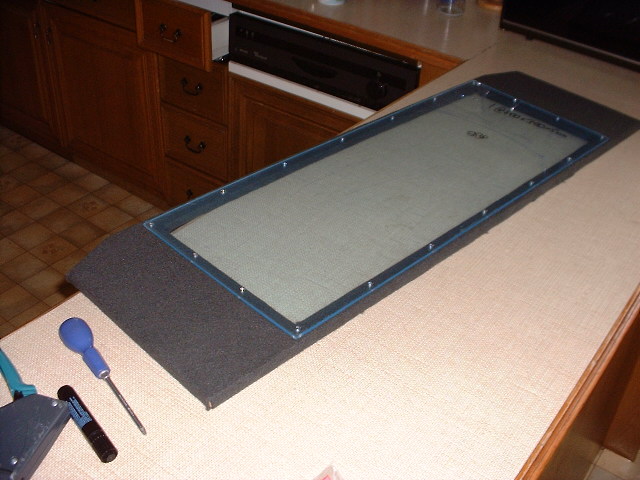

Trial mounting of perspex in breadtray lid

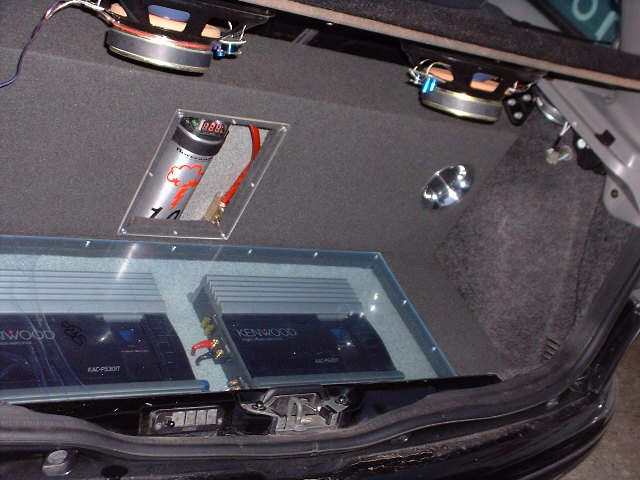

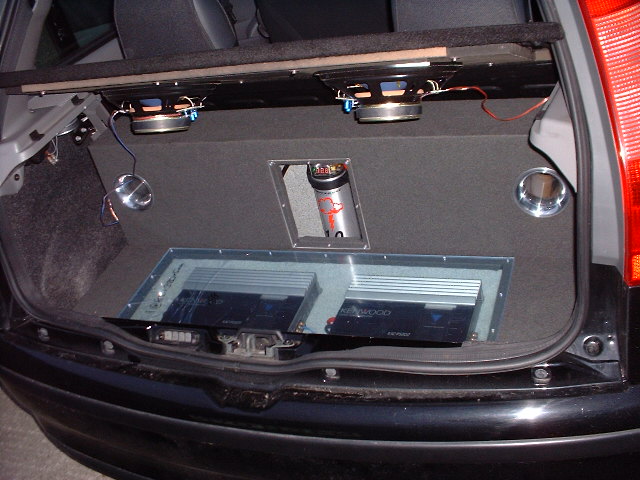

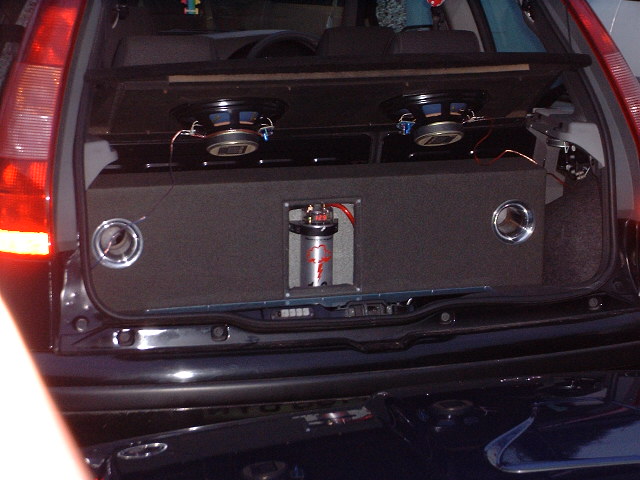

!!!FINISHED!!!

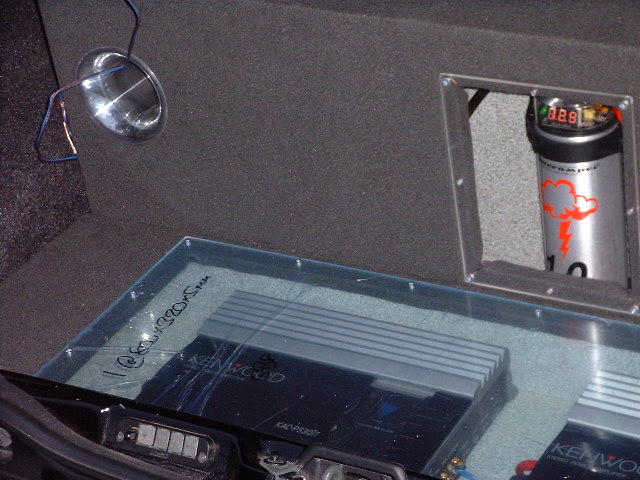

Finally, It's done, and in!

Pager is fitted

Joystick controller is in

Light's & Neons are running

Protective sheet will be removed from perspex
Waiting for MB Acoustics to
Sort out advertisment
